Additional TFortis SG-Switch Lightning Protection Unit for switches
period
TFortis SG-Switch Lightning Protection Unit is designed for additional protection of Ethernet ports and 230V PU inside TFortis PSW switches from high-energy surges induced by lightning discharges. TFortis SG-Switch allows increasing the lightning protection level of TFortis PSW switches to class 5 (according to GOST R 51317.4.5)
Features
- High level of protection against lightning statics (class 5).
- Weatherproof design (IP66 casing).
- Operation over a wide range of temperatures -55 to 70°С (-67 to 158°F).
- One device has two types of protection: 230V PU and Ethernet.
- Support Fast/Gigabit Ethernet.
- Support PoE/PoE+ (IEEE802.3af/at) including 60W PoE.
- Convenient visual control over module integrity.

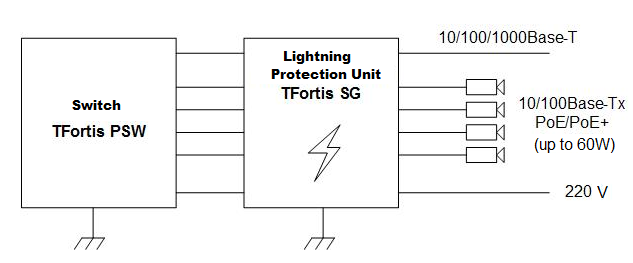

TFortis SG-Switch Lightning Protection Unit consists of Ethernet Lightning Protection Modules (ESG), 220V PU Lightning Protection Module (PSG) and casing.
* For equipment implemented since 31.03.2016
- Dust and moisture protection - IP66.
- Number of modules - 8 pcs.
- Number of glands - 13 pcs. (PG9).
- Grounding stud - M4.
- Dimensions 240С…160С…90 mm.
- Support 10/100/1000Base-T.
- Support IEEE802.3af/at (including 60W).
- Protection of all twisted pair wires.
- Providing protection to TFortis PSW switches over Ethernet ports from high-energy pulses - 4kV, 6.5/700 microsec, according to the "wire-ground" scheme with the performance criteria B (GOST R 51317.4.5).
- Providing protection to TFortis PSW switches over 220V power circuits from high-energy pulses - 4kV, 1/50 microsec, according to the "wire-wire" and "wire-ground" schemes with the performance criteria B (GOST R 51317.4.5).
- Screw-type terminal block.
- Maximum cross section - 2.5 sq.mm.
- TFortis SG lightning protection unit is designed for 24-hour outdoor operation at ambient temperature from -55 to 70°C (-67 to 158°F)
- Mean time between failures is more than 50 000 hours (5-7 years).
- It is recommended to check the integrity of lightning protection modules after thunderstorms or at the end of a thunderstorm season.
* For equipment implemented since 31.03.2016
